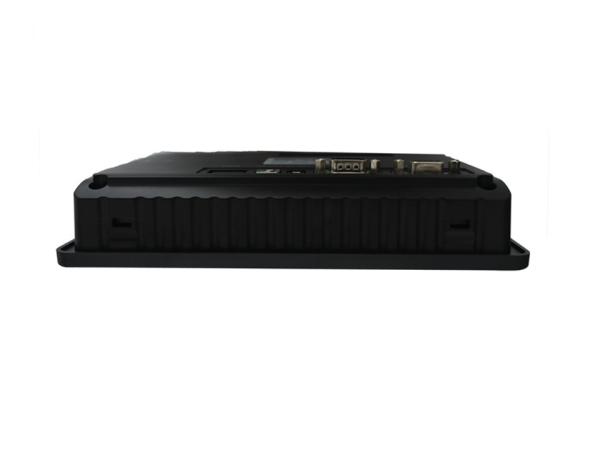

Resistive Industrial Touch Screen HMI 7 Inch , 800×400 Resolution Metal Enclosure

  • 1
  • 2
  • 3

Brand Name : FLEXEM

Model Number : OEM-FE4070E-C

Certification : CE

Place of Origin : ShenZhen

MOQ : Negotiable

Price : Negotiation

Payment Terms : T/T

Supply Ability : 5000 pcs/week

Delivery Time : 1-7 business days after payment confirmed

Packaging Details : Carton

Display : 7" TFT LCD

Resolution : 800×400

Colors : 24-bit-Colors

Brightless : 360cd/㎡

Download Project : U-Disk/USB Device /SDCard/Ethernet

Dimension : 200mm×146mm×40mm

Contact Now

Resistive Industrial Touch Screen HMI 7 Inch , 800×400 Resolution Metal Enclosure

Description:

* 7" 800×480 TFT LCD
* Metal enclosure and with only 38mm thickness
* Industrial Isolated Power Supply module, 4 Serial Ports
* Wide temperature, working under -20~70C
* The mainboard is with spray coating treatment, adapt to harsh industrial environment

Ethernet 10M/100M
SD Card Supporting
Operating Temperature -20~70℃
Shell Material Front Cover Made By Aluminum.and The Surface With Hard Oxide Treatment:The Back Cover Is Made Of Galavanized Sheet,and The Surface Is With Dry Spray Treatment

1.Power Terminals
Pin1 DC24V Resistive Industrial Touch Screen HMI 7 Inch , 800×400 Resolution Metal Enclosure
Pin2 0V
Pin3 FG
2.COM1/COM3
Pin1 Rx-(B) Resistive Industrial Touch Screen HMI 7 Inch , 800×400 Resolution Metal Enclosure
Pin2 RxD_PLC (COM1 RS232)
Pin3 TxD_PLC (COM1 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM3 RS232)
Pin8 TXD_PLC(COM3 RS232)
Pin9 Tx+
3.COM2/COM4
Pin1 Rx-(B) Resistive Industrial Touch Screen HMI 7 Inch , 800×400 Resolution Metal Enclosure
Pin2 RxD_PLC (COM2 RS232)
Pin3 TxD_PLC (COM2 RS232)
Pin4 Tx-
Pin5 GND
Pin6 Rx+(A)
Pin7 RxD_PLC(COM4 RS232)
Pin8 TXD_PLC(COM4 RS232)
Pin9 Tx+
